    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor

    High Accuracy Stable Gps Tracking Fuel Tank Level Sensor


    JT606X Fuel sensor is a capacitance type of fuel sensor of high precision, the accuracy is 0.5% and the resolution is 1mm, Voltage type, Current type and Digital type are available.

    Fuel sensor to detect fuel consumption monitoring for truck and generator

    The fuel sensor is used to measure fuel level change in fuel tank in dynamic conditions.

    The fuel sensor is wokring with GPS/GSM tracker for the fuel consumption monitoring.


    Unique Features :
    1. With 3 technology patents
    2. Wide power voltage input
    3. Integrated structure without any elastic element
    4. Push button field calibration for convenient use

    5. Easy to install,can be cut off and detect fuel level continuously


    Application

    1. Logistics truck’s fuel consumption monitoring

    2. Construction machinary’s fuel consumption monitoring

    3. Container machinary’s fuel consumption monitoring

    4. Generator’s fuel consumption monitoring in factory, building site

    5. Generator’s fuel consumption monitoring in cell tower site


    Specifications
    Acquisition Principle
    Capacitive
    Power Input
    4-70V
    Power Consumption
    0.13W/5V,0.19W/12V,0.38W/24V
    Accuracy
    Resolution: <1mm, Accuracy: <0.5%
    Communication Interface
    RS-232, RS-485, CAN (Customizable)
    Baud Rate
    2400,4800,9600,57600,115200 (or customized by users)
    Output
    Voltage : 0-5V, Current: 4-20mA, Resistance: 10-500Ω
    Measuring Range
    10CM-150CM
    Protection Grade
    IP67
    Housing Material
    Aluminum alloy
    Operating Temperature
    -40°C ~~+85°C
    Storage Temperature
    -40°C ~~+105°C
    Weight
    400g (500mm)
    Size
    550mm, 750mm, 1000mm (Customizable

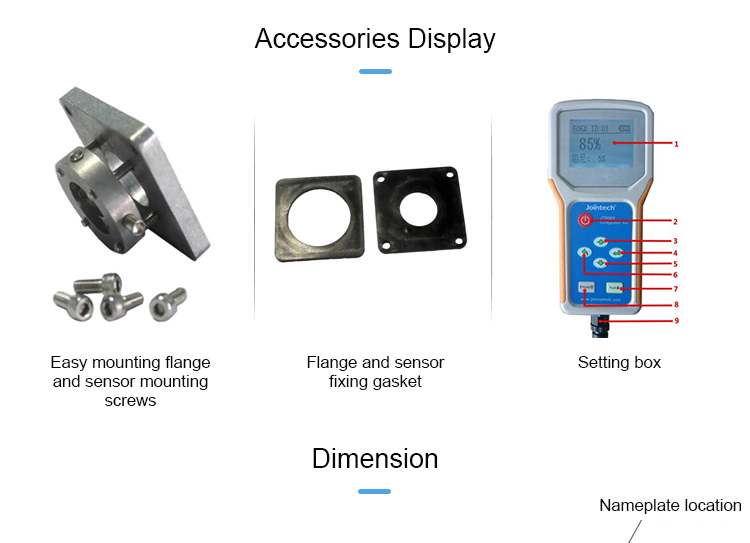

    FUEL LEVEL SENSOR STANDARD ACCESSORIES
    Probe : sealed, probe length from 10-150cm.
    Flange : patent design
    Connection cable: standard 5.5m. optional: 10m, 15m
    FUEL LEVEL SENSOR CALIBRATION BOX

    FOR Easy full and empty calibration
    Built in battery
    screen to read fuel level in real time.
    set damping value

    Applications
    • Logistics Fleet Fuel Consumption Monitoring
    • Oil Transportation Remote Monitoring
    • Genset Fuel Consumption Monitoring
    • Buses Fuel Consumption Monitoring
    • Coaches Fuel Consumption Monitoring
    • Consutruction Machineries Fuel Consumption Monitoring
    • Diesel Fuel Consumption Monitoring
    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor

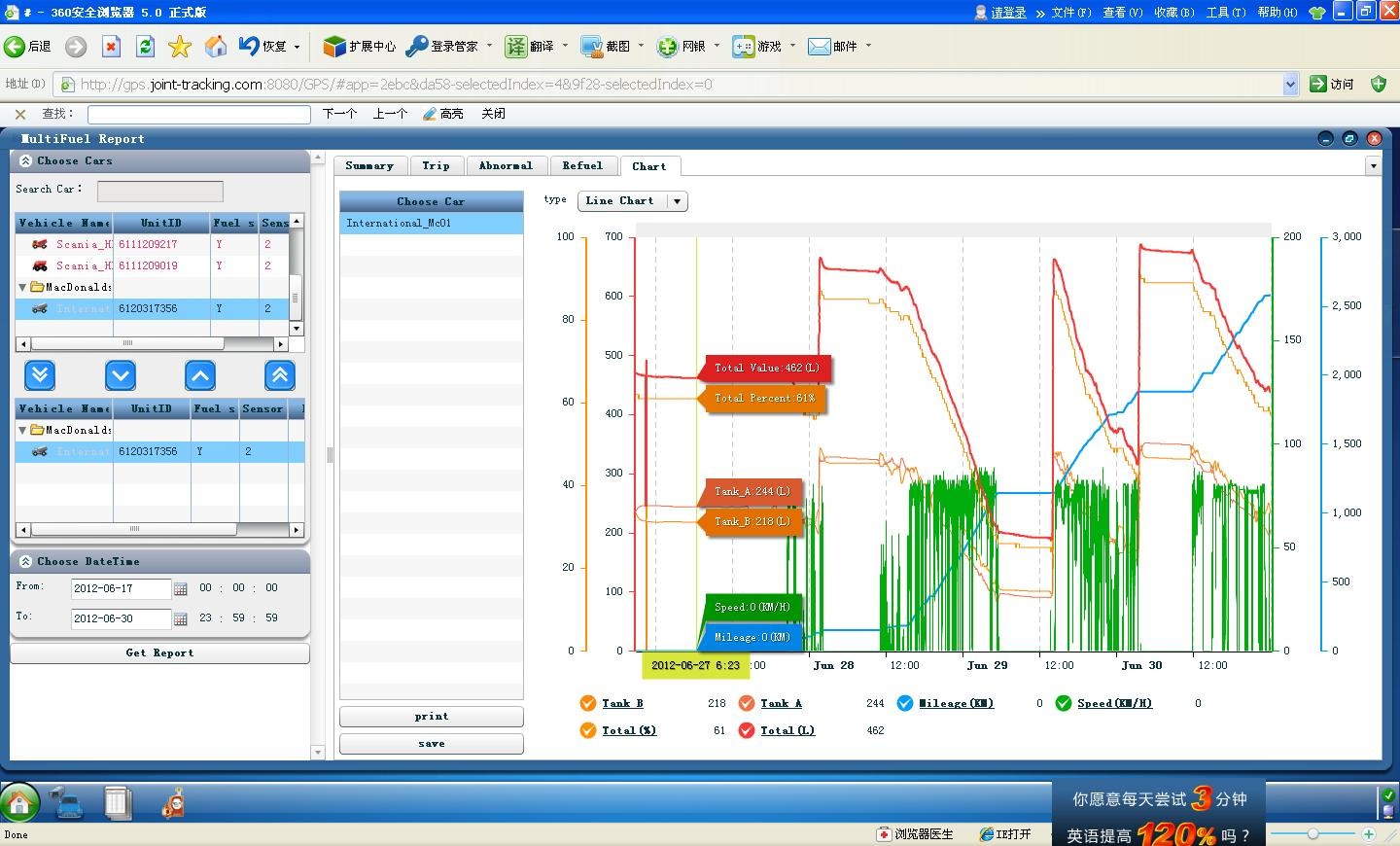

    Read FUEL LEVEL by Mobile and PC,

    Fuel curve
    Fuel analysis report
    Fuel change alarm
    Catche me at andrea at jointcontrols dot com for more info.

    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor

    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor

    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor

    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor

    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor


    5V Diesel Fuel Level Sensor , 20mA Diesel Tank Level Sensor


    FAQ:


    Q: Do you have your own factory?

    A:Yes, we are manufacturer in China for over 15 years located in Guangdong, China

    Q: Why choose us?

    A:we have worked with 50 customers from Fortune 500, which include Huawei, Carefour, Dia, DHL,SGS......etc,
    in cooperating with those internataional enterprises and orgnizations, we can fully satisfy your needs in mobile
    assets monitoring field.

    Q: Do you have your own tracking platform?

    A:yes, we can provide not just web based tracking software, but also IOS/Android APPS

    Q: Do you provide customized hardware and software?

    A:Yes, we can provide not just customized hardware, but also software funcationalities.

    Q: What's your delivery time?

    A: For samples, 2-4 days, bulk order, 7-15 days generally
